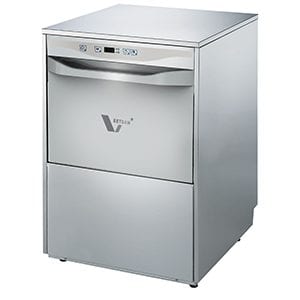

Undercounter Dishwasher, double skin, insulated with atmospheric boiler, drain pump, detergent and rinse aid dispenser, DIN 10512 and AO 60 certification, 40r/h – 502074

Undercounter Dishwasher, double skin, insulated with atmospheric boiler, drain pump, detergent and rinse aid dispenser, DIN 10512 and AO 60 certification, 40r/h

pdf-icoDownload the product data sheet

PRODUCT CODE 502074 Category:

Product Description

Main Features

· Performance is certified for disinfection level according to DIN 10512 standard (1st cycle) and A60 level according to EN 15883-1 standard (2nd cycle) by independent third party.
· 90 second cycle is certified according to DIN 10512 standard. While 240 second cycle is certified A60 level according to EN 15883-1 standard which including final pause to improve the drying result to avoid water residuals on the washed wares.
· Built-in atmospheric boiler with rinse booster pump to provide constant water temperature and pressure for rinsing, independent from water inlet.
· Washing capacity per hour of 40 racks or 480 dishes per hour.
· An effective rinse system uses only 3 litres (1st cycle) or 4 liters (2nd cycle) of clean hot water per basket for perfect disinfection result at low energy, water, detergent and rinse aid consumption.
· Cycle cannot be interrupted thanks to door lock mechanism ensuring the complete cycle is performed.
· Built-in rinse aid and detergent dispenser with automatic initial and continuous cycle loading for perfect result while minimizing service and maintenance needs.
· Built-in atmospheric boiler sized to raise incoming 50 °C water to 90 °C minimum for sanitizing rinse. No external booster is required. Constant temperature of 90 °C thoughout the rinsing cycle regardless of the network’s water pressure.
· High efficiency air gap (class A) in water inlet circuit to avoid water being siphoned back contaminating the network is compliant with EN 61770 standard, WRAS, Belgaqua backflow prevention requirements.
· Incorporated Soft Start feature to offer additional protection to more delicate items.
· 4 second (variable) pause after washing and before rinsing ensures that no drops of unclean water will fall on the clean items at the end of the rinsing cycle.
· Unique temperature interlock guarantees required temperatures in both the wash and final rinse.
· Double skinned insulated wall ensures a low noise level and a reduction in heat loss from the machine.
· Automatic self-cleaning cycle to avoid bacteria proliferation.
· State-of-the-art electronic controls with built-in programming, self-diagnostics for serviceability and automatic interior self-cleaning cycle
· IPX 4 water protection.
· Digital read-out keeps operator informed as to temperatures.
· Fault auto-diagnosis system
· Three phase or single phase electrical connection, convertible on-site.
· Low noise level.


· Heavy duty Stainless steel construction.
· Internal cavity as well as exterior panels are all 304 series Stainless steel.
· Special designed Stainless steel nozzles provide superior cleaning action.
· Revolving Stainless steel wash/rinse arms above and below the basket.
· Interchangeable wash/rinse arms screw out for simple clean up.
· Large deep drawn wash tank and internal wash area with round corners and no pipes to avoid dirt built-up.
· Element protection from dry fire and low water.
· The boiler drain facilitates the evacuation of stagnant water after long periods of inactivity to ensure a higher level of hygiene.
