Commercial Dishwashers

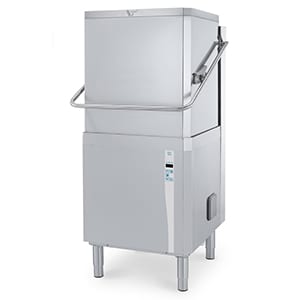

Hood Type Dishwasher insulated with atmospheric boiler, filtering system & detergent dispenser, 72r/h – 504130

Hood Type Dishwasher insulated with atmospheric boiler, filtering system & detergent dispenser, 72r/h

pdf-ico Download the product data sheet

PRODUCT CODE 504130 Category:

Product Description

Main Features
• The machine can be connected to cold water.
• Built-in atmospheric boiler sized to raise incoming water to a minimum of 84 °C for sanitizing rinse. No external booster is required. Constant temperature of 84 °C throughout the rinsing cycle regardless of the network’s water pressure.
• Unique temperature interlock guarantees required temperatures in both the wash and final rinse.
• Incorporated Soft Start feature to offer additional protection to more delicate items.
• Slanted wash arms and sloped ceiling to avoid detergentfilled wash water dropping on clean dishes after the rinsing phase, thus guaranteeing ideal washing results.
• Cycle may be interrupted at any time by lifting the hood.
• Automatic self-cleaning cycle and self-draining vertical wash pump and boiler to avoid bacteria proliferation.
• State-of-the-art electronic controls with built-in programming, self-diagnostics for serviceability and automatic interior self-cleaning cycle.
• Built-in rinse aid and detergent dispenser with automatic initial and continuous cycle loading for perfect result while minimizing service and maintenance needs.
• Three phase electrical connection, convertible to single phase on-site.
• IP25 protection against water jets, solid objects and small animals (larger than 6 mm).
• Advanced Filtering System provides cleaner wash water and higher active detergent thus ensuring better washing performances and lower running costs.
• Maximum capacity per hour of 72 racks or 1296 dishes.
• 50/84/150 seconds cycles.
• Requires only 2,3 liters of water per washing cycle thus ensuring low energy, water, detergent and rinse aid consumption.

• Heavy duty Stainless steel construction. Internal cavity as well as exterior panels are in 304 series Stainless steel.
• Pressed tank in front position to facilitate cleaning.
• Double skin insulated hood.
• Specially designed Stainless steel wash/rinse arms and nozzles provide superior cleaning action.
• Revolving interchangeable Stainless steel wash/rinse arms above and below the rack, screw out for simple clean up.
• Pre-arranged for on-site HACCP implementation and Energy Management device.
• Element protection from dry fire and low water.
• Unit to include drain, detergent and rinse aid dispenser pumps
